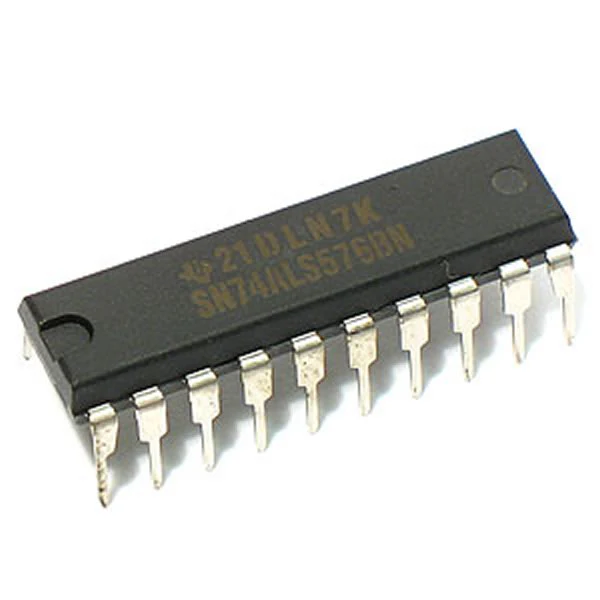

A20251 - SN74ALS576BN Octal D-Type Edge-Triggered Flip-Flops (TI)
These octal D-type edge-triggered flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These flip-flops enter data on the low-to-high transition of the clock (CLK) input. The output-enable (OE) input does not affect internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are disabled. The SN74AS576BN is characterized for operation from 0°C to 70°C.
Features:
State Buffer-Type Inverting Outputs Drive Bus Lines Directly
Bus-Structured Pinout
Buffered Control Inputs
Features:
State Buffer-Type Inverting Outputs Drive Bus Lines Directly
Bus-Structured Pinout
Buffered Control Inputs
$0.89
A20251 - SN74ALS576BN Octal D-Type Edge-Triggered Flip-Flops (TI)—
$0.89
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These octal D-type edge-triggered flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These flip-flops enter data on the low-to-high transition of the clock (CLK) input. The output-enable (OE) input does not affect internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are disabled. The SN74AS576BN is characterized for operation from 0°C to 70°C.
Features:
State Buffer-Type Inverting Outputs Drive Bus Lines Directly
Bus-Structured Pinout
Buffered Control Inputs
Features:
State Buffer-Type Inverting Outputs Drive Bus Lines Directly
Bus-Structured Pinout
Buffered Control Inputs
