A11226 - 74F38N Quad 2-Input Positive-NAND Buffer (Signetics)

These devices contain four independent 2-input NAND buffer gates with open-collector outputs. They perform the Boolean functions Y = A ? B or Y = A + B in positive logic. The open-collector outputs require pullup resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels. The 74F38N is characterized for operation from 0?C to 70?C.

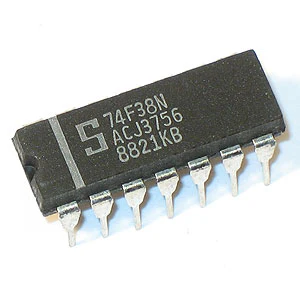

14 pin DIP. Manufactured by Signetics.
