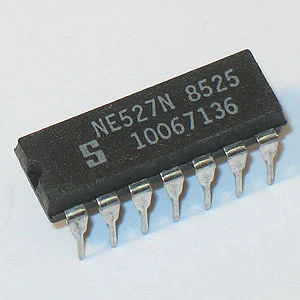

A10693 - NE527N Voltage Comparator (Signetics)

The NE527N is a high-speed analog voltage comparator which, for the first time, mates state-of-the-art Schottky diode technology with the conventional linear process. This allows simultaneous fabrication of high speed TTL gates with a precision linear amplifier on a single monolithic chip. The NE527N is similar in design to the NE529 voltage comparator except that it incorporates an ?Emitter-Follower? input stage for extremely low input currents. This opens the door to a whole new range of applications for analog voltage comparators.

Features:
15ns propagation delay
Complementary output gates
TTL or ECL compatible outputs
Wide common-mode and differential voltage range
Typical gain of 5000

Applications:
A/D conversion
ECL-to-TTL interface
TTL-to-ECL interface
Memory sensing
Optical data coupling

14 pin DIP. Manufactured by Signetics.
